Trusted Manufacturer and Supplier
SHE Heat Exchanger is a trusted manufacturer and supplier of high-performance Plate Heat Exchangers designed for efficient heat transfer across a wide range of industrial applications. Our Plate Heat Exchangers are engineered to provide maximum thermal efficiency, compact design, easy maintenance, and long service life while reducing energy consumption and operating costs.
We offer customized Plate Heat Exchanger solutions for industries such as HVAC, food processing, pharmaceuticals, chemicals, power generation, dairy, marine, and industrial cooling systems.
What is a Plate Heat Exchanger?
A Plate Heat Exchanger (PHE) is a highly efficient heat transfer device that uses a series of corrugated metal plates to transfer heat between two fluids. The fluids flow through alternate channels created by the plates, allowing maximum heat transfer without mixing.
Compared to traditional heat exchangers, Plate Heat Exchangers provide higher thermal efficiency, compact size, and easier maintenance.
How Does a Plate Heat Exchanger Work?
A Plate Heat Exchanger consists of multiple specially designed plates compressed together inside a frame.
- Hot fluid flows through one set of channels.
- Cold fluid flows through alternate channels.
- Heat transfers through the thin metal plates.
- The fluids remain completely separated.
- Corrugated plate patterns create turbulence, increasing heat transfer efficiency.
This design allows excellent thermal performance while minimizing space requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Plate Material | SS304, SS316L, Titanium, SMO 254, Hastelloy |
| Frame Material | Carbon Steel / Stainless Steel |
| Gasket Material | NBR, EPDM, Viton, HNBR, Silicone |
| Design Pressure | As Per Requirement |
| Design Temperature | As Per Requirement |
| Flow Arrangement | Counter Flow |
| Connection Type | Flanged / Threaded |
| Heat Transfer Capacity | Customized |
| Application | Heating, Cooling, Heat Recovery |
Key Features
- High Heat Transfer Efficiency
- Compact and Space-Saving Design
- Easy Expansion by Adding Plates
- Low Maintenance Requirements
- Reduced Energy Consumption
- Excellent Corrosion Resistance
- Easy Cleaning and Inspection
- Suitable for High-Performance Industrial Applications
- Leak-Free Gasket Design
- Cost-Effective Operation
Applications
Our Plate Heat Exchangers are widely used in:
- HVAC Systems
- Food & Beverage Industry
- Dairy Processing Plants
- Pharmaceutical Industry
- Chemical Processing Plants
- Power Generation Plants
- Marine Industry
- Oil & Gas Sector
- Industrial Cooling Systems
- Heat Recovery Applications
Types of Plate Heat Exchangers
Gasketed Plate Heat Exchanger
The most commonly used type where plates are sealed using replaceable gaskets. Suitable for a wide range of industrial applications and easy maintenance.
Semi-Welded Plate Heat Exchanger
Designed for applications involving aggressive fluids or refrigerants. Provides enhanced sealing and reliability.
Fully Welded Plate Heat Exchanger
Ideal for high-temperature and high-pressure applications where gaskets are not suitable.
Brazed Plate Heat Exchanger
Compact heat exchangers with plates permanently brazed together, commonly used in HVAC and refrigeration systems.
Advantages of Plate Heat Exchangers
Higher Thermal Efficiency
The corrugated plate design creates turbulence that improves heat transfer performance.
Compact Design
Requires significantly less installation space compared to conventional heat exchangers.
Easy Maintenance
Plates can be easily opened, cleaned, inspected, and replaced when required.
Energy Savings
Efficient heat transfer helps reduce energy consumption and operating costs.
Flexible Capacity Expansion
Additional plates can be added to increase heat transfer capacity without replacing the entire unit.
Lower Fouling
The turbulent flow pattern minimizes deposit buildup and improves performance.

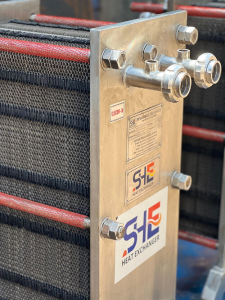

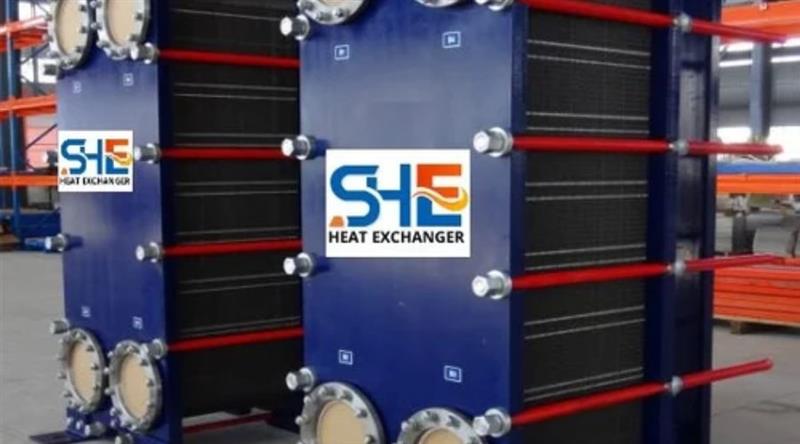

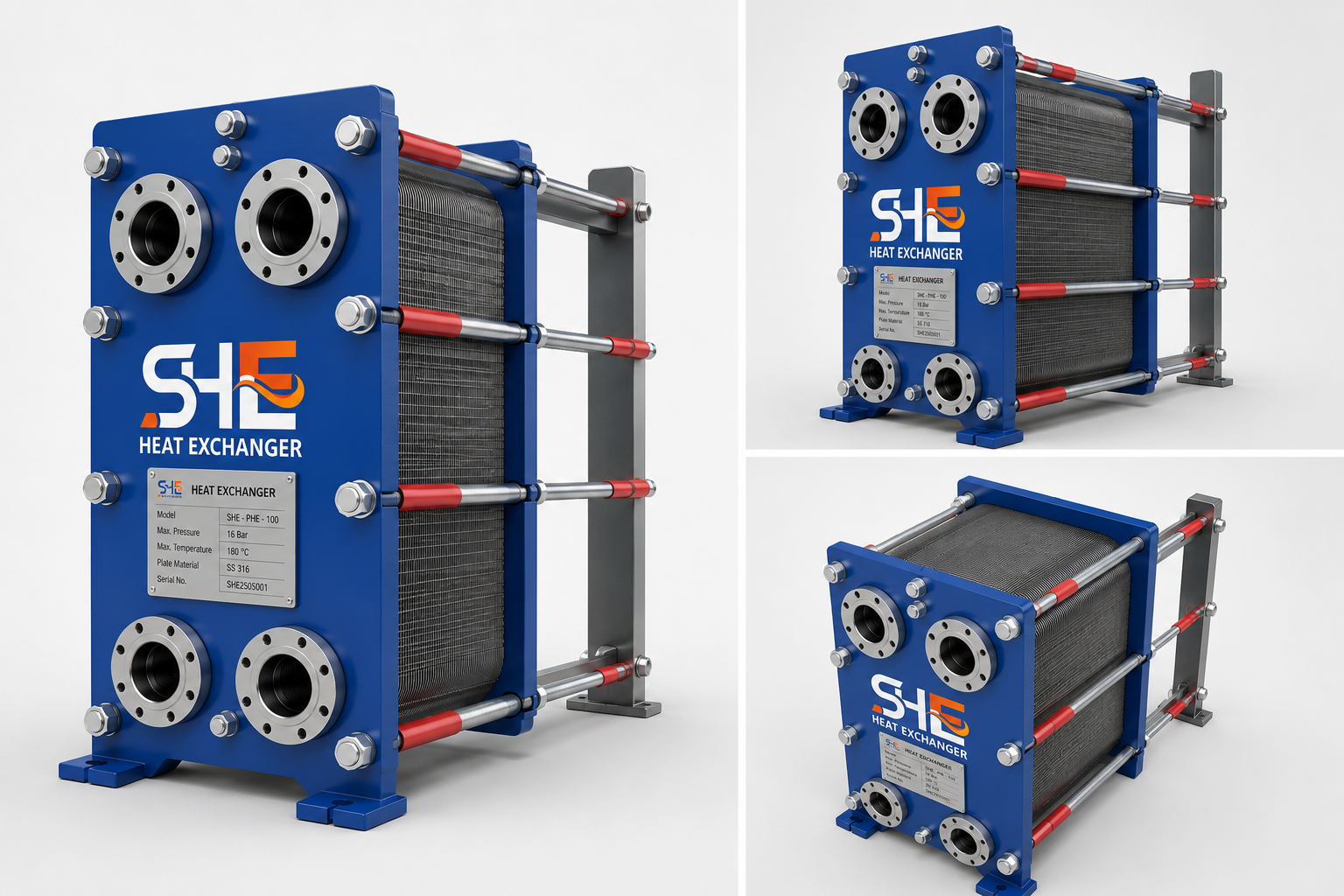

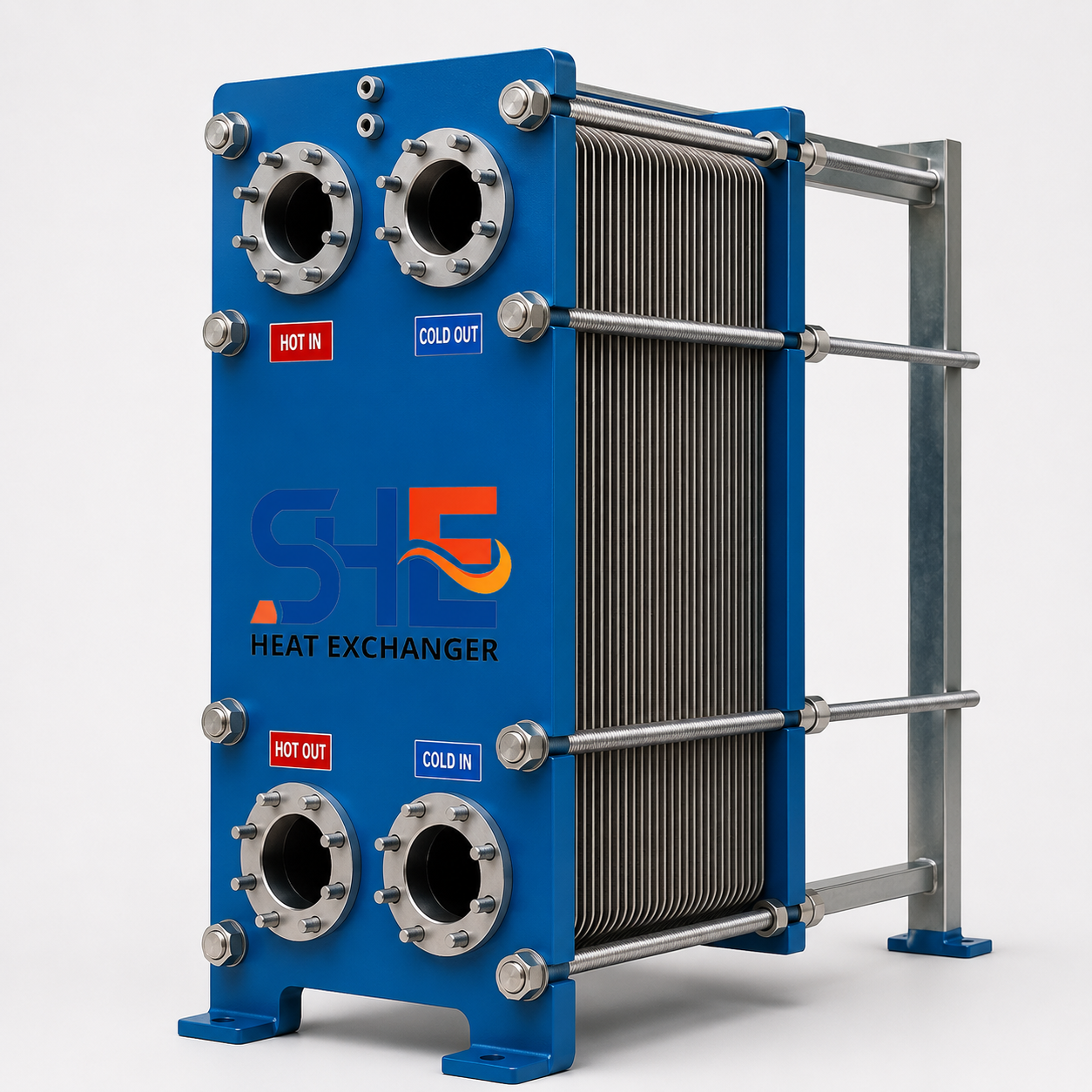

Product Gallery
Why Choose SHE Heat Exchanger?
- Customized Engineering Solutions: Every Plate Heat Exchanger is designed according to customer-specific operating conditions.
- Premium Quality Materials: We use certified raw materials to ensure durability and corrosion resistance.
- Advanced Manufacturing Facility: Modern production equipment ensures consistent quality and precision.
- Strict Quality Control: Each unit undergoes inspection and testing before dispatch.
- Experienced Technical Team: Our engineering team provides complete support from design selection to installation guidance.
- Competitive Pricing: High-quality products with cost-effective solutions.
- Timely Delivery: Efficient production planning ensures on-time project execution.
Frequently Asked Questions
What is the main advantage of a Plate Heat Exchanger?
High thermal efficiency in a compact design with easy maintenance.
Which industries use Plate Heat Exchangers?
HVAC, food processing, pharmaceuticals, chemicals, power generation, marine, and industrial cooling industries.
Can Plate Heat Exchangers be customized?
Yes, we manufacture customized Plate Heat Exchangers according to process requirements.
What plate materials are available?
SS304, SS316L, Titanium, SMO 254, Hastelloy, and other special alloys.
Are spare plates and gaskets available?
Yes, we supply replacement plates, gaskets, and maintenance support.
Do you provide technical support?
Yes, we provide complete technical consultation and after-sales support.
